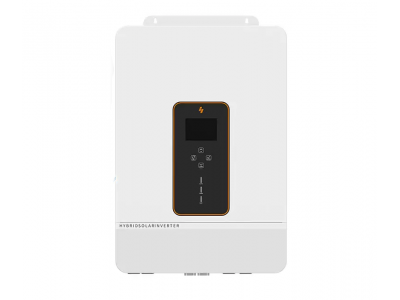

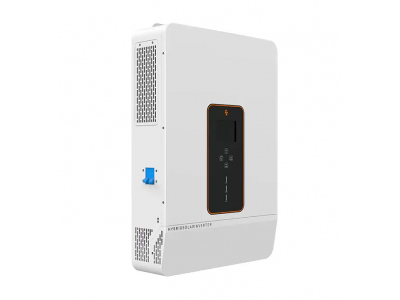

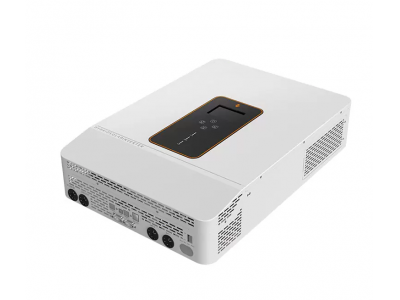

ASF series All-in-one Solar Charger Inverter
Rated Output Power 8,000W/10,000W
Rated Output Voltage 230Vac
Rated Battery Voltage 48Vdc
Rated Output Power 8,000W/10,000W
Rated Output Voltage 230Vac
Rated Battery Voltage 48Vdc
Effcient
Dual MPPT with up to 99.9% efficiency
Up to 22A PV input current perfect for high power modules
Reliable
Outputs high quality pure sine wave AC power
8-10kW load power to meet the needs of most households
User-friendly
Industrial design with a modern aesthetic look
Easy to install and simple to use
Safety
360 degrees of security from hardware to software
EU and North American safety approvals
All-in-one
Solar Charger Controller up to 200A charging current
Support for Li-ion battery BMS communication
Intelligent
Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley tariff
MODEL | ASF4880S180-H | ASF48100S200-H |
INVERTER OUTPUT | ||
Rated Output Power | 8,000W | 10,000W |
Max.Peak Power | 16,000W | 20,000W |
Rated Output Voltage | 230Vac(L1/N/PE single-phase) | |
Load Capacity of Motors | 5HP | 6HP |
Rated AC Frequency | 50/60Hz | |
Waveform | Pure Sine Wave | |
Switch Time | 10ms(typical) | |
Parallel capacity | / | |
BATTERY | ||
Battery Type | Li-ion / Lead-Acid / User Defined | |
Rated Battery Voltage | 48Vdc | |
Voltage Range | 40-60Vdc | |
Max.MPPT Charging Current | 200A | |
Max.Mains/Generator Charging Current | 100A | 120A |
Max.Hybrid Charging Current | 180A | 200A |
PV INPUT | ||
Num. of MPP Trackers | 2 | |
Max.PV array power | 11,000W | |
Max.input current | 22/22A | |
Max.Voltage of Open Circuit | 500Vdc | |
MPPT Voltage Range | 125-425Vdc | |
MAINS / GENERATOR INPUT | ||
Input Voltage Range | 90-270Vac | |
Frequency Range | 50/60Hz | |
Bypass Overload Current | 32A | |
EFFICIENCY | ||
MPPT Tracking Efficiency | 99.9% | |
Max. Battery Inverter Efficiency | 92% | |
GENERAL | ||
Dimensions | 620*435*130mm(2*1.4*0.4ft) | |
Weight | 20kg(44lb) | 21kg(46.3lb) |
Protection Degree | IP20,Indoor Only | |
Operating Temperature Range | -15~55℃,>45℃ derated(5~131℉,>113℉ derated) | |
Noise | <60dB | |
Cooling Method | Internal Fan | |
Warranty | 2 Years | |
COMMUNICATION | ||
Embedded Interfaces | RS485 / CAN / USB / Dry contact | |
External Modules (Optional) | Wi-Fi / GPRS | |
CERTIFICATION | ||
Safety | IEC62109-1, IEC62109-2,UL1741 | |
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |
RoHS | Yes |
